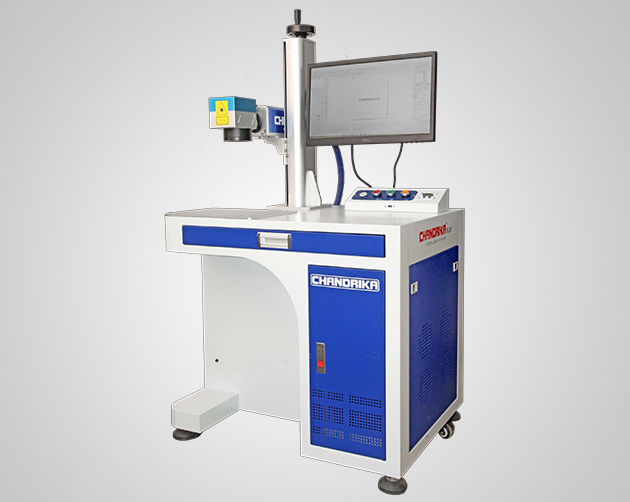

Fiber Laser Marking Machine
LASER
- Laser Ytterbium Fiber Laser (Multi Diode EP) :- Class IV
- Average Laser O/p Power 20 Watts / 30 Watts
- Max. Peak Power >8 kW
- Wavelength 1060-1070 nm
- Pulse repetition Rate 20-80 KHz
- Pulse Width 100 ns
- Typical Beam Quality M2 = 1.4
- Mode of Operation : Pulsed
- Pulse Energy @ 20 kHz : 1 mJ
- Rd Pointer for Positioning Visible Red Light (636 nm)
MARKING
- Marking Speed up to 7000 mm/sec
- Marking Fields 110(std.) / 175 / 210 mm2 (Optional)
- Work Clearance 185 / 296 / 387 mm
- Min. Character Size 0.22mm
ELECTRICAL
- Power Connection 220-250 V-AC, 1 Phase
- Avg. Power consumption < 1KVA
SOFTWARE
- Compatible with Windows 2000 / XP / 7 / 8
- PLT, .DXF, .BMP, JPG & Other Vector & Bitmap Images are supported by the software for Marking.
OTHER FEATURES
- Cooling Type Air Cooled
- Environment Free from Dust, Oil, Mist & Other Contaminations (incl. Structure)
- Temperature 18 to 20 deg C
- Max. Weight < 70 kg.
- Air Cooled
- Inbuilt Guide Laser
- Maintenance Free - No optical Alignment
- Compact and Easy Integrity
- Expected MTTF (Diode) Life: Greater than 1,00,000 hrs
APPLICATIONS
AUTOMOBILE
- Bearings
- Piston, Piston Rings
- Gears
- Shafts (Crank & Cam Shaft)
- Valves
- Brakes & Clutch
- Liners & Cylinders
- Spark Plugs
- Engine ID Plates
- Nozzles
- Filter & Filter Parts
JEWELLERY
Hallmarking & Logo Marking on
- Gold & Silver Bangles , Rings , Bracelets , Earrings , Nose pins , Pendants ,etc
MACHINE TOOLS
- HSS
- Carbide Steel Tools
- Wrenches
- Diamond Tools
- Drill Bits
- Cutting Tools, Milling Cutters
- Saw Blades
- Dies & Taps
- Gauges, Measuring Instruments, Calipers
KITCHENWARE & BATHROOM FITTING
- Cookware set
- Knife, Spoon, Fork
- Lemon Squeezer
- Bathroom Taps & Fittings
- Faucets
- Door, Window & Hardware
ELECTRONICS
- Integrated Circuit (ICs)
- Capacitors
- Epoxy & Ceramic Chips
- Plastic Connectors
- Transformers & Solenoid
- PCB
- Switches
OTHER CUSTOM SPECIALIZED APPLICATIONS
- PVC Cables & Connectors
- Blades
- Pens
- Buttons
- Spectacles Frame
- Awards & Sovereign
- Name Plate Marking
- And many other custom applications
