STANDARD HAND PUNCHES
Features
- Made from high Quality, heat treated tool steel. Finely balanced with liberal overall shank size.
- Sharp Face stamps - Ideal for marking steel, Stainless Steel, precious metals, copper, brass and bronze.
- Ensures deep, clear and legible stamped impression. Safeguards against chipping and splitting of hammering end.
- Precision heat treated to a hardness of 58-62 Rockwell C (HRC) at the character and 32-40 Rockwell C (HRC) at the striking end.
- Each punch is clearly described with character designation and size
- Dull Nickel Plated for rust free longer shelf life.
- Low Stress Dotted Hand Punches also available.
- Custom Logo Punch can be produced on request.
- Reverse Alphabets & Numbers for forging and die casting dies & for rubber moulds
- Butt-Welded stamps are developed for marking red-hot (upto 1000°C) Railway Axles, steel billets etc.
- Suitable for all engineering and Industrial applications
- Used with Regular Hammer or Impact Press
|
Character Size (in mm)
|
Alphabet Set (A-Z) Code
|
Number Set (0-8) Code
|
|
3mm
|
26HHP030
|
9HHP030
|
|
4mm
|
26HHP040
|
9HHP040
|
|
5mm
|
26HHP050
|
9HHP050
|
|
6mm
|
26HHP060
|
9HHP060
|
|
8mm
|
26HHP080
|
9HHP080
|
|
10mm
|
26HHP100
|
9HHP100
|
LOW-STRESS DOTTED HAND PUNCHES
Features
- Low Stress Dotted Hand Punches
- Made from high Quality, heat treated tool steel. Finely balanced with liberal overall shank size.
- Sharp Face stamps - Ideal for marking steel, Stainless Steel, precious metals, copper, brass and bronze.
- Ensures deep, clear and legible stamped impression. Safeguards against chipping and splitting of hammering end.
- Precision heat treated to a hardness of 58-62 Rockwell C (HRC) at the character and 32-40 Rockwell C (HRC) at the striking end.
- Each punch is clearly described with character designation and size
- Dull Nickel Plated for rust free longer shelf life.
- Butt-Welded stamps are developed for marking red-hot (upto 1000°C) Railway Axles, steel billets etc.
- Suitable for all engineering and Industrial applications
- Used with Regular Hammer
|
Character Size (in mm)
|
Alphabet Set (A-Z) Code
|
Number Set (0-8) Code
|
|
3mm
|
26HHP030D
|
9HHP030D
|
|
4mm
|
26HHP040D
|
9HHP040D
|
|
5mm
|
26HHP050D
|
9HHP050D
|
|
6mm
|
26HHP060D
|
9HHP060D
|
|
8mm
|
26HHP080D
|
9HHP080D
|
|
10mm
|
26HHP100D
|
9HHP100D
|

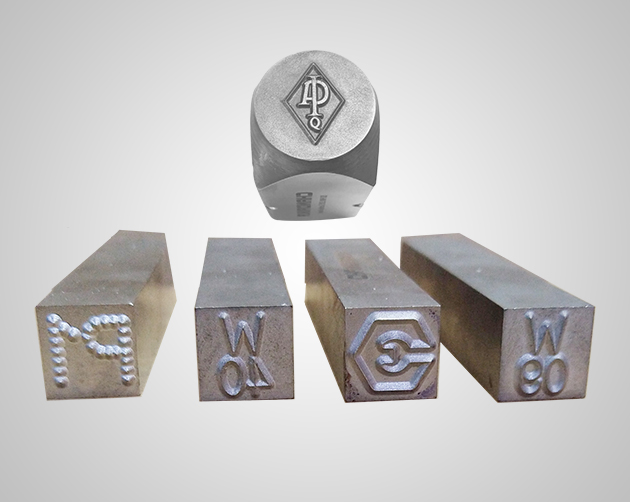

LOGO & INSPECTION STAMP (CUSTOM STAMP)
Quality Assurance (QA) and Quality Control (QC) & American Petroleum Institute Quality (APIQ) & Other Logo & Design Stamps, also known as Inspection Stamps are vital tools for manufacturers throughout the world. We offer Steel Stamps to fit your specifications.
Electric, Water, Aerospace, Construction and even Oil & Natural Gas industries to name a few, are reliant on the use of Inspection Stamps.
Features
- Designed to permanently impress the Inspector’s mark into the inspected metal component.
- Made of high grade steel and heat-treated to the appropriate degree of hardness for maximum durability.
- CHANDRIKA will produce your Steel Inspection stamps to feature the designs and sizes of your choice, to meet your needs.
