Interchangeable Steel Type

INTERCHANGEABLE STEEL TYPE (IST) SET

These Steel Type sets are ideal for stamping serial and model numbers, alpha-numeric codes and short phrases into Steel and other metals. Our Steel Type Character sets are used in Hand and Machine Type Holders. Our Steel Type sets are available in various character sizes and work exclusively with Steel Type Holders.

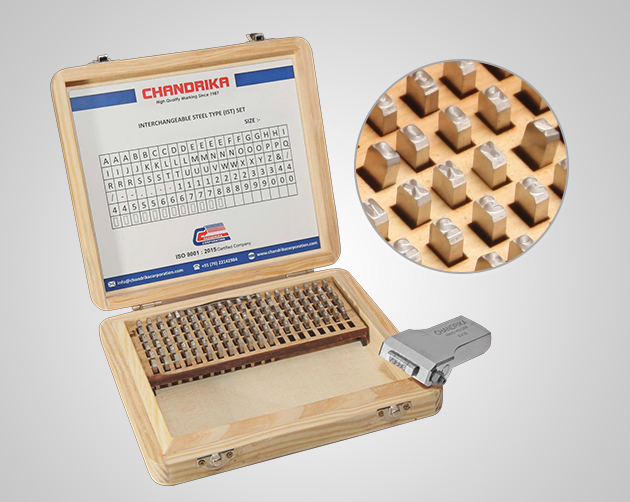

A Steel Type Kit is an excellent tool-set for permanently stamping identification and traceability marks, as well as short-phrases, etc. The Kit comprises of 112 Pcs.

Features

Types made from High Quality Tool Steel
Hardness of material is HRC 58-63
Dull Nickel plated for rust free longer shelf life.
Bevel Angles, Character Depth & Standard Calligraphy to maximize the Type life.
Sets are available with or without Holders.
Segmental, Radial, Grooved and Stepped Types are available for special applications
Low Stress (Dotted) Types
Types with Special Calligraphy design.

Available sizes

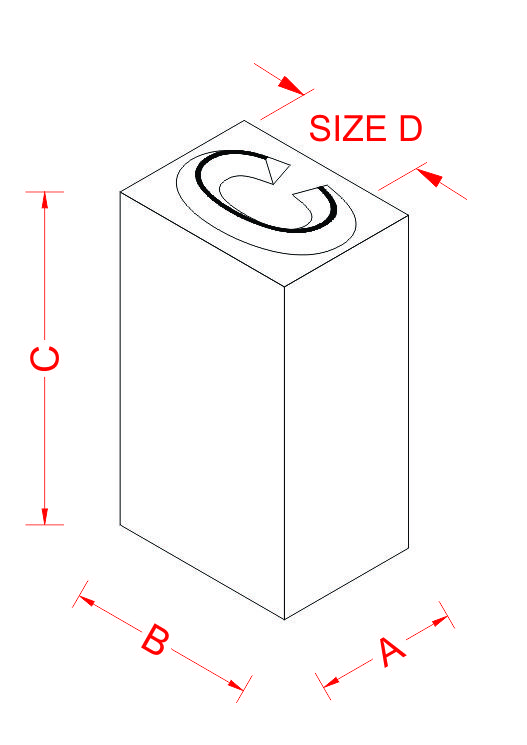

Character Size [D] (in mm)	Code	[A] (in mm)	[B] (in mm)	[C] (in mm)
1mm	T-010	1	8	25
1.59mm (1/16”)	T-062	1.59	3.18	15.88
2mm	T-020	2	8	25
2.40mm (3/32”)	T-093	2.40	6.35	19.05
3mm	T-030	3	8	25
3.18mm (1/8”)	T-125	3.18	6.35	19.05
4mm	T-040	4	8	25
4.76mm (3/16”)	T-187	4.76	7.94	19.05
5mm	T-050	5	8	25
6mm	T-060	6	8	25
6.35mm (1/4”)	T-250	6.35	9.53	19.05
8mm	T-080	8	14	25
9.53mm (3/8”)	T-387	9.53	15.88	25.40
10mm	T-100	10	14	25
12mm	T-120
16mm	T-160	16	20	30

APPLICATION

Automobile part marking
Casting
Heavy engineering
Air craft parts
Name plate marking
Motor marking

Submersible / surface pump
Railway wheels & parts
Arms & ammunition
Pharmaceuticals
Healthcare & cosmetics
Earth moving equipments and many more

CUSTOM LOGO STAMP

Custom made Stamps with total precision & with fidelity to every Logo.
Precision design cutting edge geometry for clear and long lasting marking of Logos.
Reduce Stress concentration on the marked surfaces.
Controlled hardening and tampering process to ensure marking reliability and longer service life
Dull Nickel plated to resist rusting of Stamp Marks
Assured Safety of Logo Designs in our Custody.

HAND/MACHINE HOLDER FOR IST

When the mark you need to stamp will frequently change, a Steel Type Holder is ideal. Our easy-to-use Hand Steel Type Holder selection comes in various capacities depending on the Steel Type character size you intend to use. Our Machine Type Holders are also compatible with Steel Type characters of various sizes. Machine Type Holder are used with Impact Press & Roll Marking Machine. Using a Machine Type Holder increases efficiency and supports accuracy and uniform imprints of identical depth. You can use it to arrange individual characters for spelling out different names, codes or serial numbers, etc.

Features

Designed for accurate IST Type location and it’s alignment
Positive locking of IST Types
Enable Quick change of IST Types & high Interchangeability.
Long Lasting

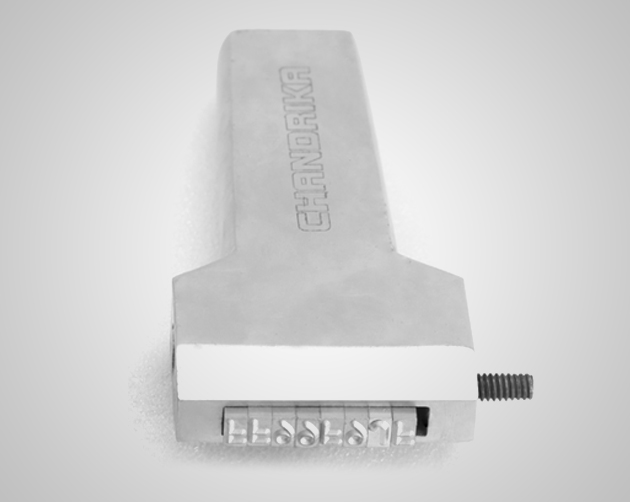

HAND HOLDER

HOLDER CODE	COMPATIBLE IST SIZE
8 H 20	T-010 / T-020 / T-030 / T-040 / T-050 / T-060
8 H 25	T-010 / T-020 / T-030 / T-040 / T-050 / T-060
8 H 40	T-030 / T-040 / T-050 / T-060
14 H 60	T-080 / T-100
125 H 750	T-062
250 H 1000	T-093
250 H 1250	T-093 / T-125

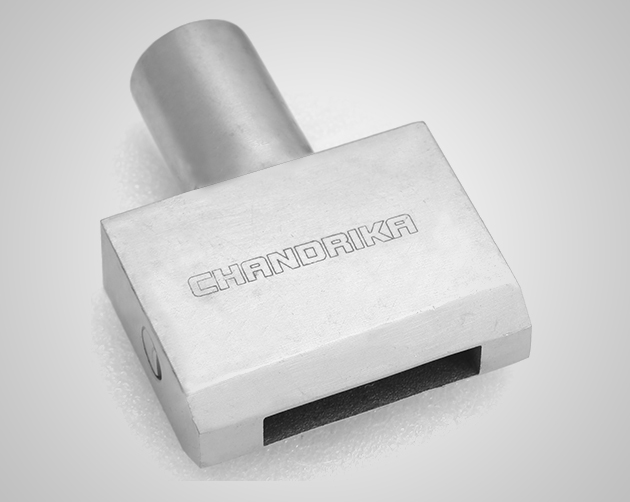

MACHINE HOLDER FOR IMPACT PRESS

HOLDER CODE	COMPATIBLE FOR
8 M 20	T-010 / T-020 / T-030 / T-040 / T-050 / T-060
8 M 40	T-020 / T-030 / T-040 / T-050 / T-060
8 M 60	T-020 / T-030 / T-040 / T-050 / T-060
8 M 80	T-030 / T-040 / T-050 / T-060
125 M 1000	T-062
125 M 2000	T-062
250 M 1000	T-093 / T-125

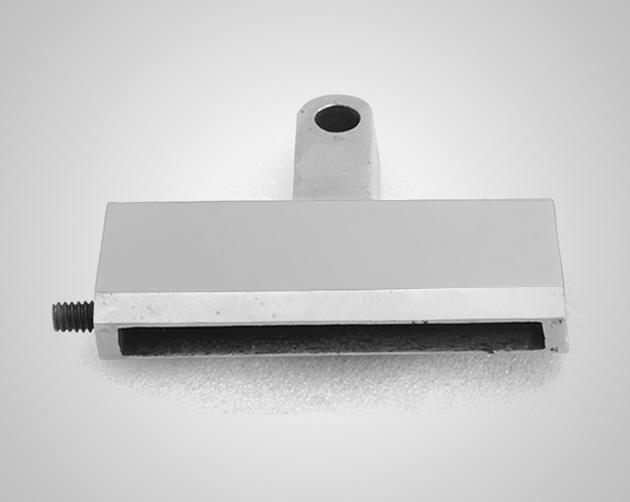

MACHINE HOLDER FOR ROLL MARKING MACHINE

HOLDER CODE	COMPATIBLE FOR
8 R 20	T-010 / T-020 / T-030 / T-040
8 R 40	T-010 / T-020 / T-030 / T-040 / T-050 / T-060
8 R 60	T-010 / T-020 / T-030 / T-040 / T-050 / T-060
125 R 1000	T-062
125 R 2000	T-062
250 R 1000	T-093 / T-125
